Documentacao do cardisk

Introducao

cardisk e um framework Python para construir aplicacoes USSD, com API baseada em decoradores e fluxo de menu interativo.

• Simple API - Decorator-based routing for clean screen handlers
• Menu System - Built-in support for interactive menus with automatic navigation
• Session Management - Automatic session handling with in-memory or Redis storage
• Monitoring - Built-in Prometheus metrics endpoint
• Error Handling - Robust error handling middleware
• Type Safe - Full type hints support
• Fast - High-performance runtime with Uvicorn

Instalacao

Criar e ativar ambiente virtual

Antes de instalar o cardisk, crie um ambiente virtual para este projeto e evite conflitos de bibliotecas.

python -m venv .venv

Ative o ambiente virtual:

# Mac/Linux
source .venv/bin/activate

# alternativa
. .venv/bin/activate

# Windows
.venv\Scripts\activate

Instalacao de producao

pip install cardisk

Quick Start

Crie um ficheiro app.py:

from cardisk import Cardisk, ussd

app = Cardisk()

@app.route("/")
def main_menu():
    ussd.menu("Welcome to Wolke Services", [
        ("Loans", "/loans"),
        ("Savings", "/savings"),
        ("Insurance", "/insurance")
    ])

@app.route("/loans")
def loans():
    ussd.menu("Loans Menu", [
        ("Apply for loan", "/loan/apply"),
        ("Check loan status", "/loan/status"),
        ("Repay loan", "/loan/repay")
    ])

@app.route("/loan/apply")
def loan_apply():
    ussd.screen(f"Enter loan amount for {ussd.msisdn}")
    ussd.next("/loan/confirm")

@app.route("/loan/confirm")
def loan_confirm():
    amount = ussd.input
    ussd.screen(f"Loan of ${amount} submitted successfully for {ussd.msisdn}")
    ussd.end()

Execute a aplicacao:

cardisk runserver

Ou com Uvicorn:

uvicorn app:app.app --reload --port 8000

API

Setup da aplicacao

from cardisk import Cardisk, ussd

app = Cardisk()

Decorador de rota: @app.route()

@app.route("/path")
def handler():
    pass

• As rotas devem iniciar com /.
• Use / como ponto de entrada do menu principal.

Objeto ussd

Propriedades:

• ussd.msisdn: numero do utilizador
• ussd.session: ID da sessao atual
• ussd.input: entrada do utilizador no passo anterior

Metodos principais:

ussd.menu("Main Menu", [
    ("Option 1", "/route1"),
    ("Option 2", "/route2")
])

ussd.screen("Hello!")
ussd.next("/verify-pin")
ussd.end()

Protocolo XML USSD

Formato da requisicao

<ussd>
    <type>1</type>
    <msisdn>254712345678</msisdn>
    <sessionid>unique-session-id</sessionid>
    <msg>user-input</msg>
</ussd>

Formato da resposta

<ussd>
    <type>2</type>
    <msg>Response text</msg>
</ussd>

Testes

Cardisk Simulator

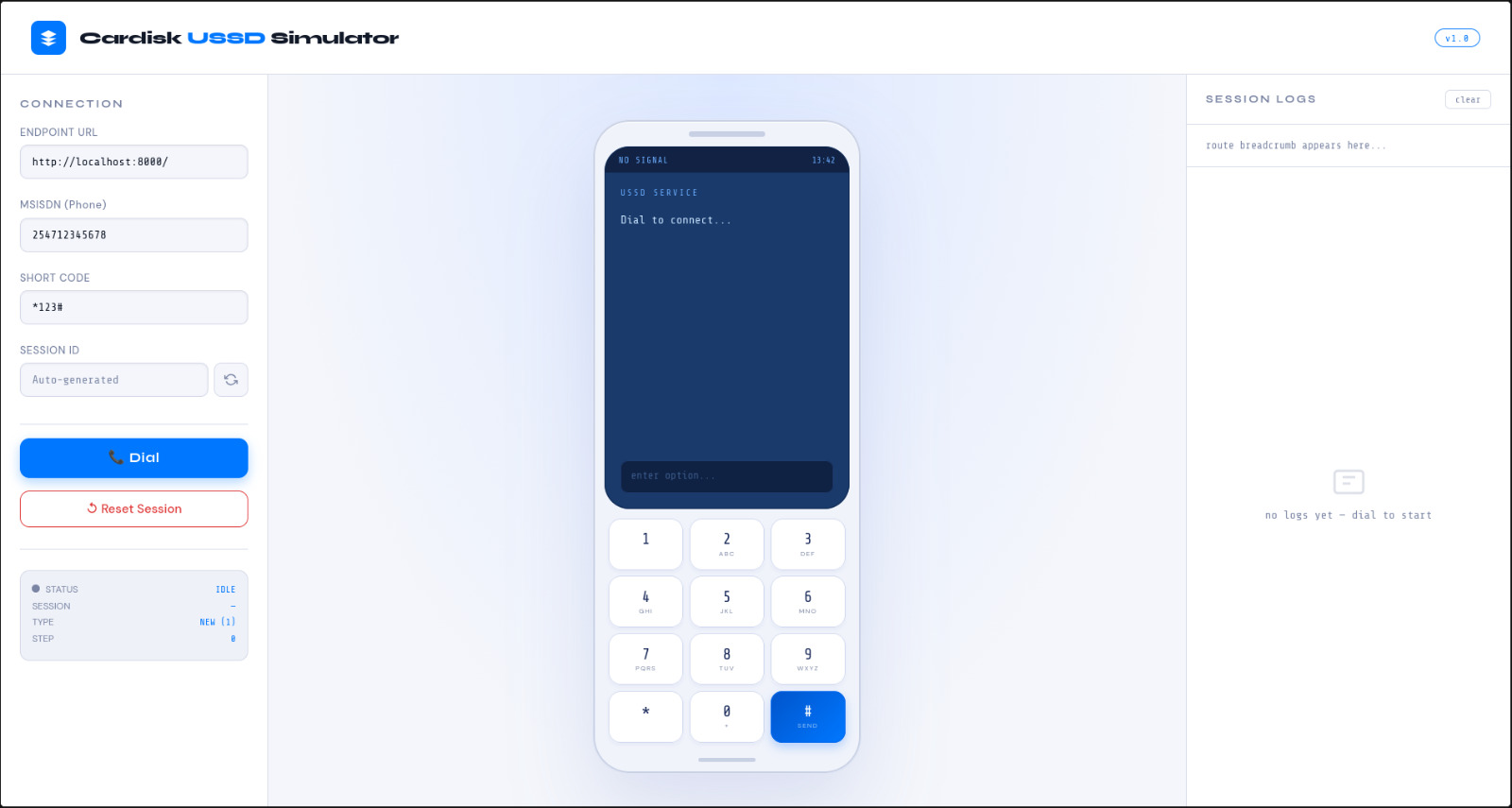

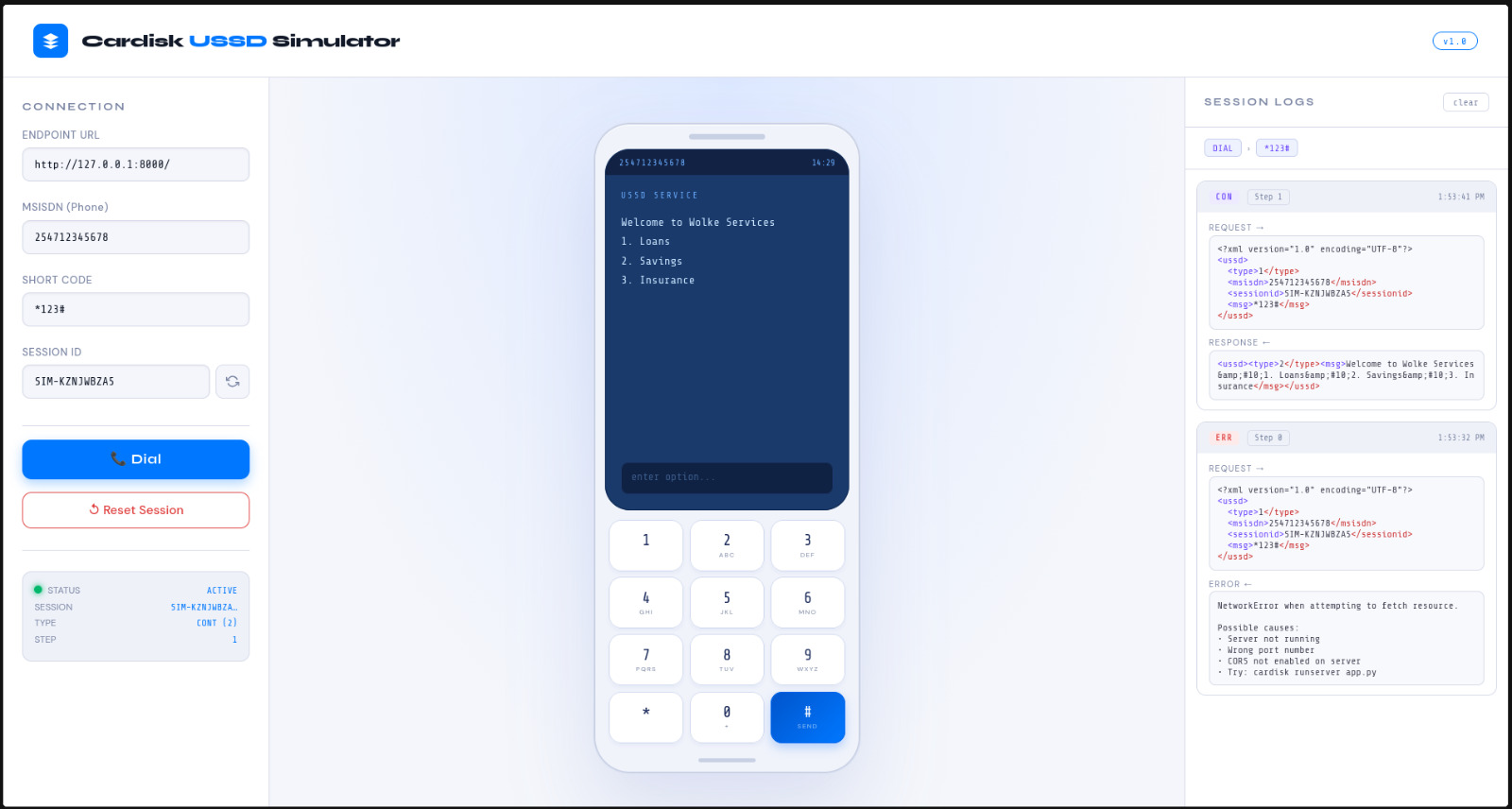

After running your cardisk app with cardisk runserver, open your browser and visit http://0.0.0.0:8000 or http://127.0.0.1:8000 to access the cardisk simulator.

Com cURL

1. Iniciar nova sessao:

curl -X POST http://localhost:8000/ \
  -H "Content-Type: application/xml" \
  -d '<ussd><type>1</type><msisdn>254712345678</msisdn><sessionid>test123</sessionid><msg></msg></ussd>'

2. Selecionar opcao de menu (ex.: opcao 1):

curl -X POST http://localhost:8000/ \
  -H "Content-Type: application/xml" \
  -d '<ussd><type>2</type><msisdn>254712345678</msisdn><sessionid>test123</sessionid><msg>1</msg></ussd>'

3. Enviar um input:

curl -X POST http://localhost:8000/ \
  -H "Content-Type: application/xml" \
  -d '<ussd><type>2</type><msisdn>254712345678</msisdn><sessionid>test123</sessionid><msg>500</msg></ussd>'

Com Python

import httpx

client = httpx.Client(base_url="http://localhost:8000")

# Start session
response = client.post("/", content="""
<ussd>
    <type>1</type>
    <msisdn>254712345678</msisdn>
    <sessionid>test123</sessionid>
    <msg></msg>
</ussd>
""", headers={"Content-Type": "application/xml"})

print(response.text)

# Continue session
response = client.post("/", content="""
<ussd>
    <type>2</type>
    <msisdn>254712345678</msisdn>
    <sessionid>test123</sessionid>
    <msg>1</msg>
</ussd>
""", headers={"Content-Type": "application/xml"})

print(response.text)

CLI

Criar novo projeto

cardisk new myproject

Acessa a pasta do projecto

cd myproject

Executar servidor

cardisk runserver --host 0.0.0.0 --port 8000

Uso avancado

Tratamento de erro personalizado

@app.route("/transfer")
def transfer():
    try:
        amount = float(ussd.input)
        if amount <= 0:
            ussd.screen("Invalid amount. Please try again.")
            ussd.next("/transfer")
        else:
            ussd.screen(f"Transfer of ${amount} successful!")
            ussd.end()
    except ValueError:
        ussd.screen("Invalid input. Please enter a number.")
        ussd.next("/transfer")

Formulario multi-step

@app.route("/register")
def register_name():
    ussd.screen("Enter your name:")
    ussd.next("/register/age")

@app.route("/register/age")
def register_age():
    name = ussd.input
    ussd.screen(f"Hello {name}! Enter your age:")
    ussd.next("/register/confirm")

@app.route("/register/confirm")
def register_confirm():
    age = ussd.input
    ussd.screen(f"Registration complete! Age: {age}")
    ussd.end()
